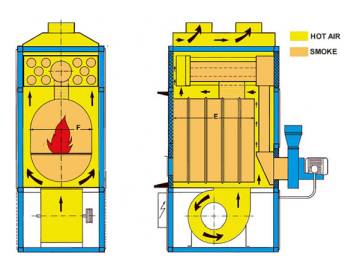

Fabbri F350

F350 Biomass Space HeaterF

399kW, with flue fan. Three phase 400v.

Technical Information

Unit width 1220 mm
Unit height 2700 mm
Unit depth 2700 mm
Flue diameter 250 mm
Flue chamber depth 1900 mm
Fuel chamber width 900 mm
Fuel chamber height 900 mm
Ventilation fan power 4.47 kW
Air delivery pipes 4 x 350 mm Ø
Air flow (at 15 °C) 26000 m3/hr
Flue fan power 1.12 kW
Ventilation exit static pressure 160pa
Electricity supply 15amps supply 8 amps per phase
Fuel consumption @ 20% moisture 125Kg per hour

Can I burn any type of wood?

No. You can only burn dry or seasoned wood. You must not use painted, treated wood, sawdust or wood containing foreign objects or glue, which includes ply and MDF. Burning these items may cause damage to your Fabbri and the environment. However you can use any other type of dry or seasoned wood, such as off cuts, broken pallets, waste wood, split logs, pellets, briquettes as well as small quantities of paper and cardboard mixed with wood.
